MEDICARE basin mixer
Basin mixer MEDICARE is made from a lead-free material and it have a clean visual design with round, smooth lines, and joints have been kept to a minimum. The mixer has clear color markings on the lever and extra-long spouts to easily access the water jet. The aerator is angled at 32 degrees, which optimizes the aim of the water jet in the basin. The mixer also has FM Mattsson’s well-known energy-saving solutions and functions such as cold start and soft closing. The mixer comes with a self-closing hand shower, wall bracket and a hose.
About the collection
FM Mattsson MEDICARE collection has been designed in close collaboration with healthcare professionals. A new collection that emphasis on hygiene, accessibility and sustainability and has been developed to meet the specific needs of the healthcare sector and make daily life easier for people with reduced mobility and orientation capacity.
- Description
- Chrome, connection nut G3/8"
- Article number
- 32570010
- EAN
- 7391887258954
- Flow 3 bar
- 5.1 l/m
PROPERTIES
- With self-closing hand shower, wall bracket and hose
- Cold Start
- Ceramic cartridge with soft closing function
- Adjustable flow control and temperature limiter
- Aerator without air admixture, constant flow 6 l/min at 200–600 kPa, angled 32°
- Flexible connection tubes in stainless steel braided Soft PEX® with 3/8" connecting nut, with protective plastic covering for improved hygiene and easier cleaning

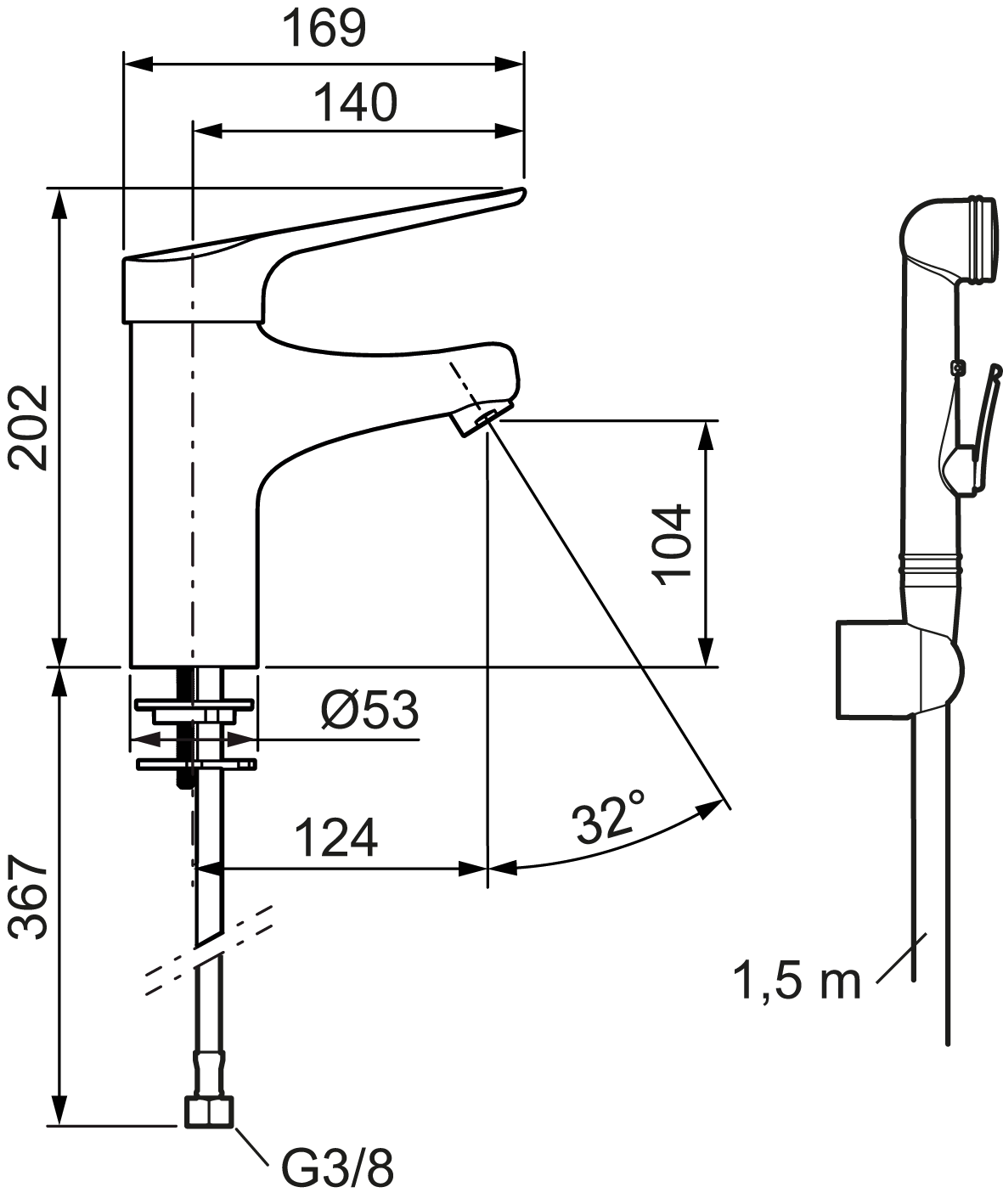

- Extra long spout reduces risk of water jet spraying onto the basin’s waste. Spout projection 124 mm
- Hygienic design, lever and mixer body without dividing lines
- Lead Free material
- Acoustic group 1 (hand shower 2) (ISO 3822)
- Hole diameter Ø28-37 mm

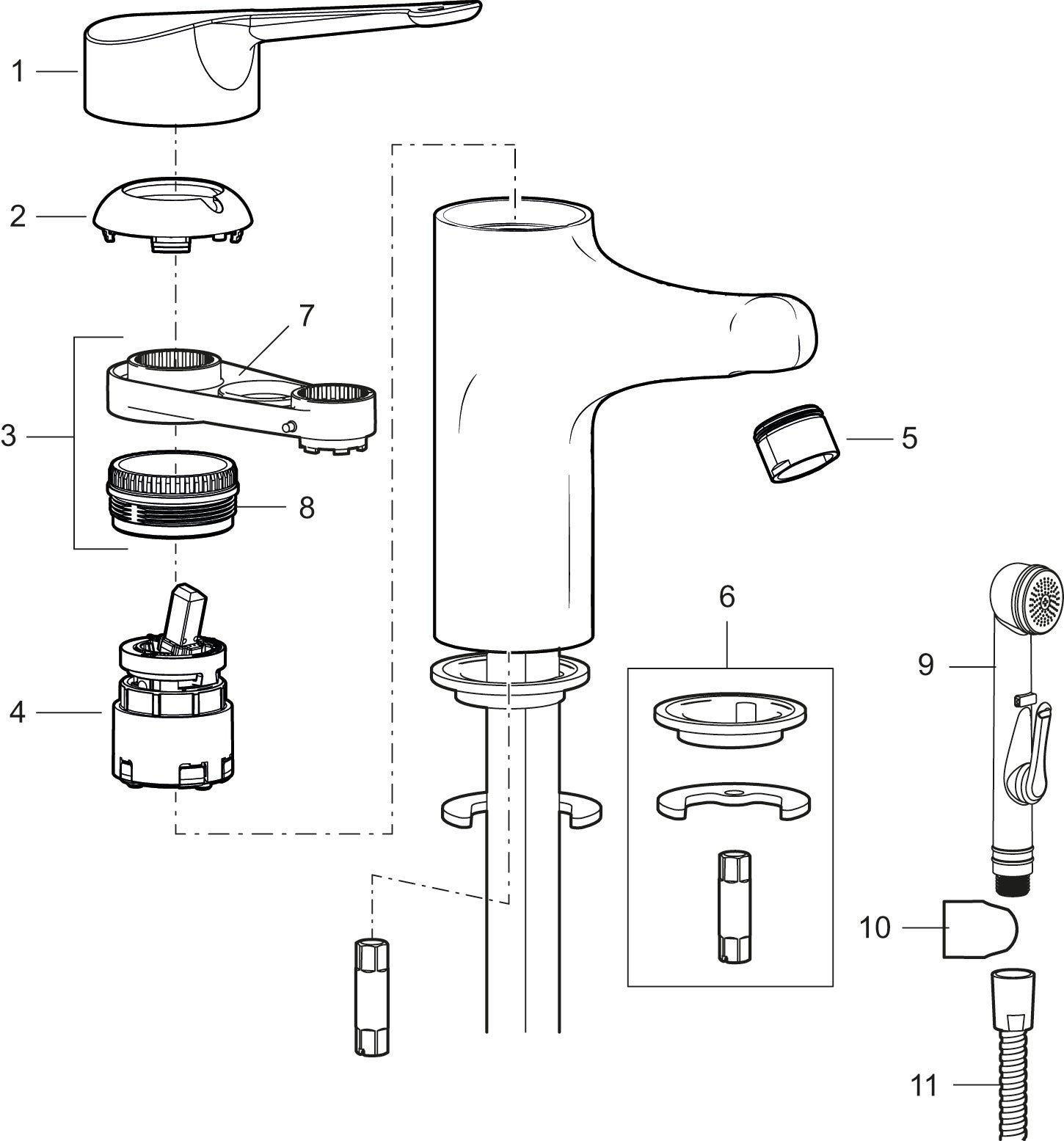

| No. | Art no. | RSK | Description |
|---|---|---|---|
| 1 | S600063 | 8394131 | Lever, complete, L=150 mm |
| 1 | S600062 | 8394130 | Lever, complete, L=190 mm |
| 2 | S600064 | 8394132 | Cover ring |
| 3 | 58530140 | 8241726 | Fastening nipple with service tool |
| 4 | S600273 | 8387230 | Ceramic cartridge with service tool, cold start (green ring) |
| 5 | S600065 | 8281672 | Aerator M24 ext., 6 l/min at 200–600 kPa |
| 6 | S600160 | 8387096 | Fastening kit, for basin mixer |
| 7 | S600298 | 3870203 | Service tool |
| 8 | 29390000 | 8295356 | Fastening nipple |
| 9 | S600206 | 8233049 | Self-closing hand shower, chrome |
| 10 | 34093000 | 8186018 | Wall bracket, chrome |
| 11 | S600207 | 8236647 | Shower hose, L=1,5 m, chrome |
Byggvarubedömningen
modal.bvb.desc;
Accepted installation instructions
Leadfree
Lead Free means that we have replaced the lead normally found in brass alloys. In this way, we get products with less environmental impact. Lead Free-labeled products contain less than 0.1% lead and are thus classified as lead-free.
Energyclass
The table below the product shows the energy class of the mixer. Certificates for energy labeling can be found under documents.
