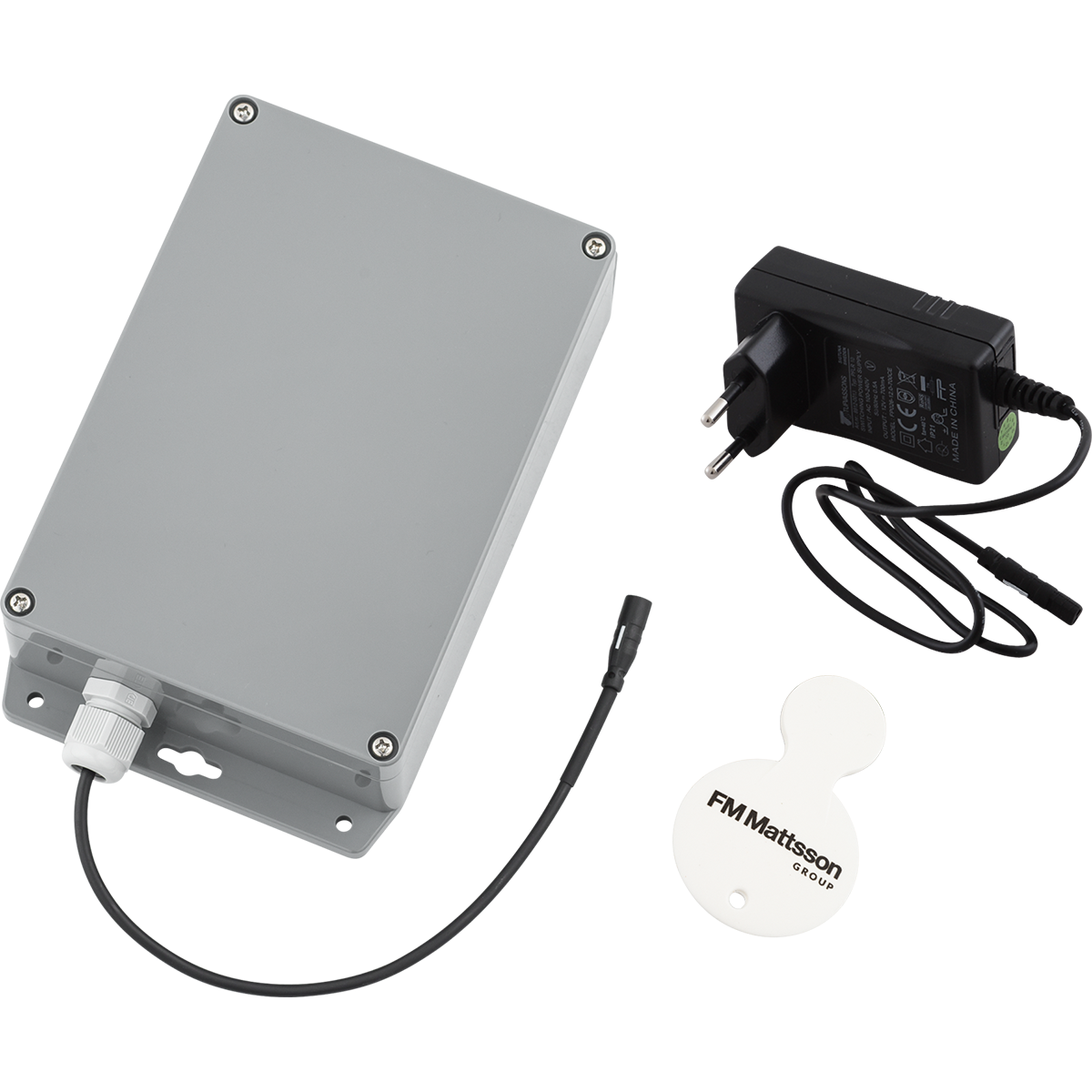

Power supply 12V
- Article number
- S600129

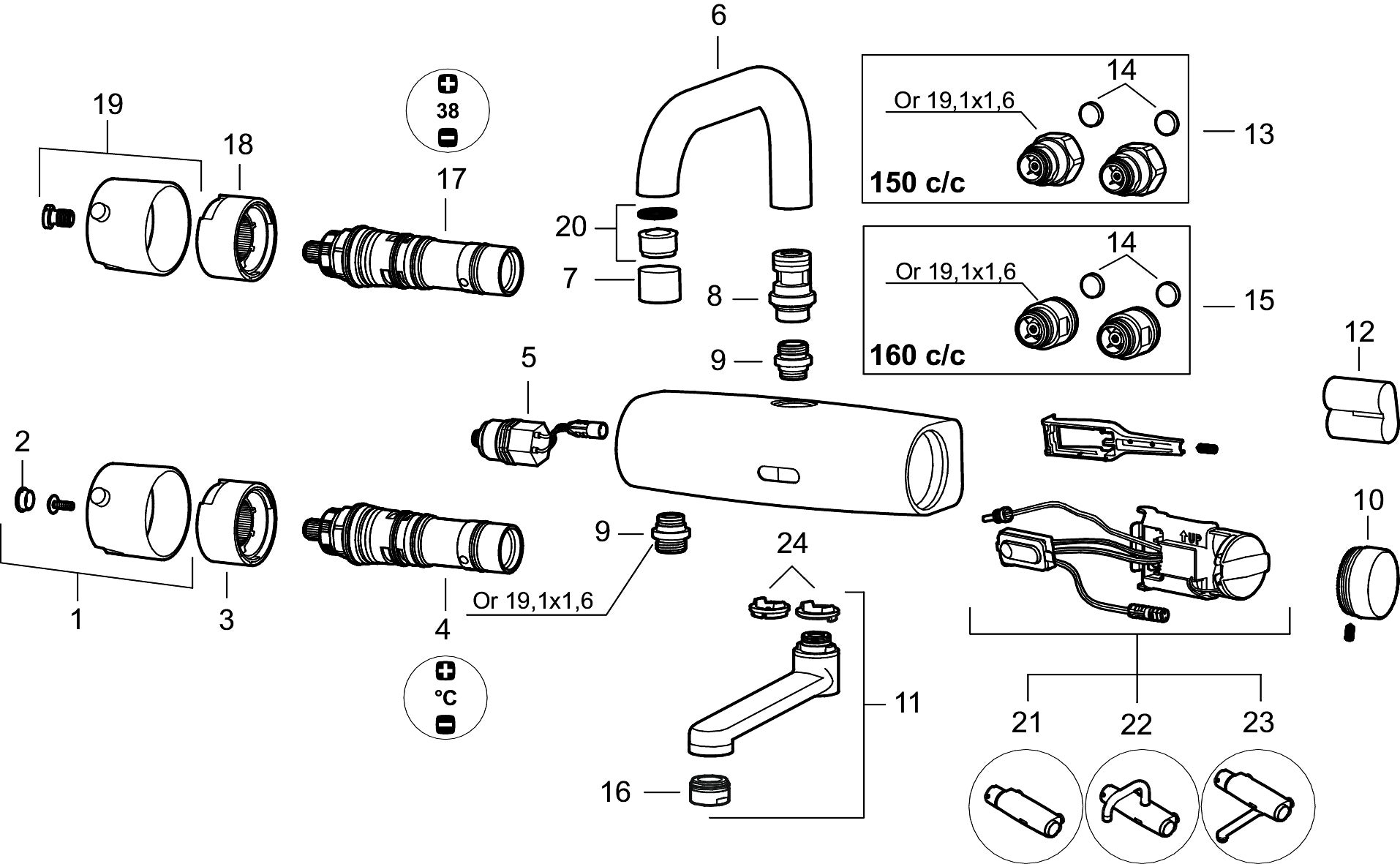

No. | Art no. | RSK | Description |
---|---|---|---|
1 | 209611.AE | On/off handle, complete (for basin mixer) | |
2 | 409373.AE | End cover | |
3 | 209610.AE | Stop ring (for basin mixer) | |
4 | 729555 | Mixing valve (for basin mixer), Lead Free | |
4 | 16280100 | Mixing valve (for basin mixer) | |
5 | S600277 | 8398040 | Solenoid valve |
6 | 209608 | Spout | |
7 | 131410.AE | 8281509 | Housing M22 int. |
8 | 209607.AE | Nipple | |
9 | 409365.AE | 8187026 | Nipple M18x1 - G1/2 |
10 | 729459.AE | Cover plug for battery, black | |
11 | 459558 | Spout | |
12 | S600135 | 8483191 | Battery |
13 | 209605.AE | Inlet connectors 150 c/c (left-handed thread) | |
14 | 209604.AE | Filters, 2 pcs | |
15 | 209606.AE | Inlet connectors 160 c/c | |
16 | 131356.AE | 8281499 | Aerator M24 ext. |
17 | 729556 | Termostatic unit (for shower- and hospital mixer) | |
18 | 209620.AE | Stop ring (for shower- and hospital mixer) | |
19 | 209621.AE | On/off handle, complete (for shower- and hospital mixer) | |
20 | 132205.AE | 8281441 | Aerator insert, 5 l/min at 200–600 kPa |
21 | 729462.AE | Electronic unit WMS (for shower mixer) | |
22 | 729463.AE | Electronic unit WMS (for mixer with overhead spout) | |
23 | 729464.AE | Electronic unit WMS (for mixer with underlaying spout) | |
24 | 729467.AE | Limitation segment (for mixer with underlying spout) |
modal.bvb.desc;
Lead Free means that we have replaced the lead normally found in brass alloys. In this way, we get products with less environmental impact. Lead Free-labeled products contain less than 0.1% lead and are thus classified as lead-free.
The table below the product shows the energy class of the mixer. Certificates for energy labeling can be found under documents.
