MMIX II shower system kit

Our classic chrome MMIX shower system is revised with a bold new straight-lined form and increased proportions for superior functionality and aesthetics. Internally, it features an updated thermostat to maximise energy efficiency while enhancing your showering experience.

Find retailers
Description
Chrome, 160 c/c, LEED/BREEAM compliant
Article number
331800.LD
EAN
7391887267239
Flow 3 bar
6.0 l/m

PROPERTIES

Consist of:
MORA MMIX II thermostatic mixer:

  • Pressure balanced thermostatic mixer
  • With reversible headwork
  • Temperature handle with safety stop at 38°C
  • With Eco-function
  • Lead Free material
  • Approved non-return valves, EN-Standard EN1717

MORA MMIX II Shower System:

  • Shower hose in metal, PVC- and BPA-free
  • With Easy-Clean anti-limescale system
  • Wall bracket freely adjustable in height, 700–1000 from connection and 50–100 mm from wall, 2x20 mm spacers included, with sealing, hidden pipe joint
Backflow protection unit type EB
K MMIX II_shower system kit 150cc och 160cc.png
No. Art no. RSK Description
1 S600191 8397017 On/off handle, complete, chrome
2 S600192 8397019 End cover, chrome, 2 pcs
3 S600190 8397018 Temperature handle, complete, chrome
4 S600020 8441462 Ceramic headwork, with service tool (shower mixer)
4 S600269 8387232 Ceramic headwork, without tool (shower mixer)
5 S600117 8439714 Stop ring, reversible
6 S600087 8439711 Scalding protection ring
7 S600084 8439709 Thermostatic cartridge, complete, incl. service tool
7 S600271 8397030 Thermostatic cartridge, complete, without service tool
8 S600088 8439712 Nipple M18x1–G1/2 for shower mixer
9 S600112 8920116 Nipple M18x1
9 S600265 Nipple M18x1, with flow regulator 9 l/min
10 409361.AE 8228492 Inlet connector 160 c/c
11 409359.AA 8345172 Filter kit for connecting links, retail packed

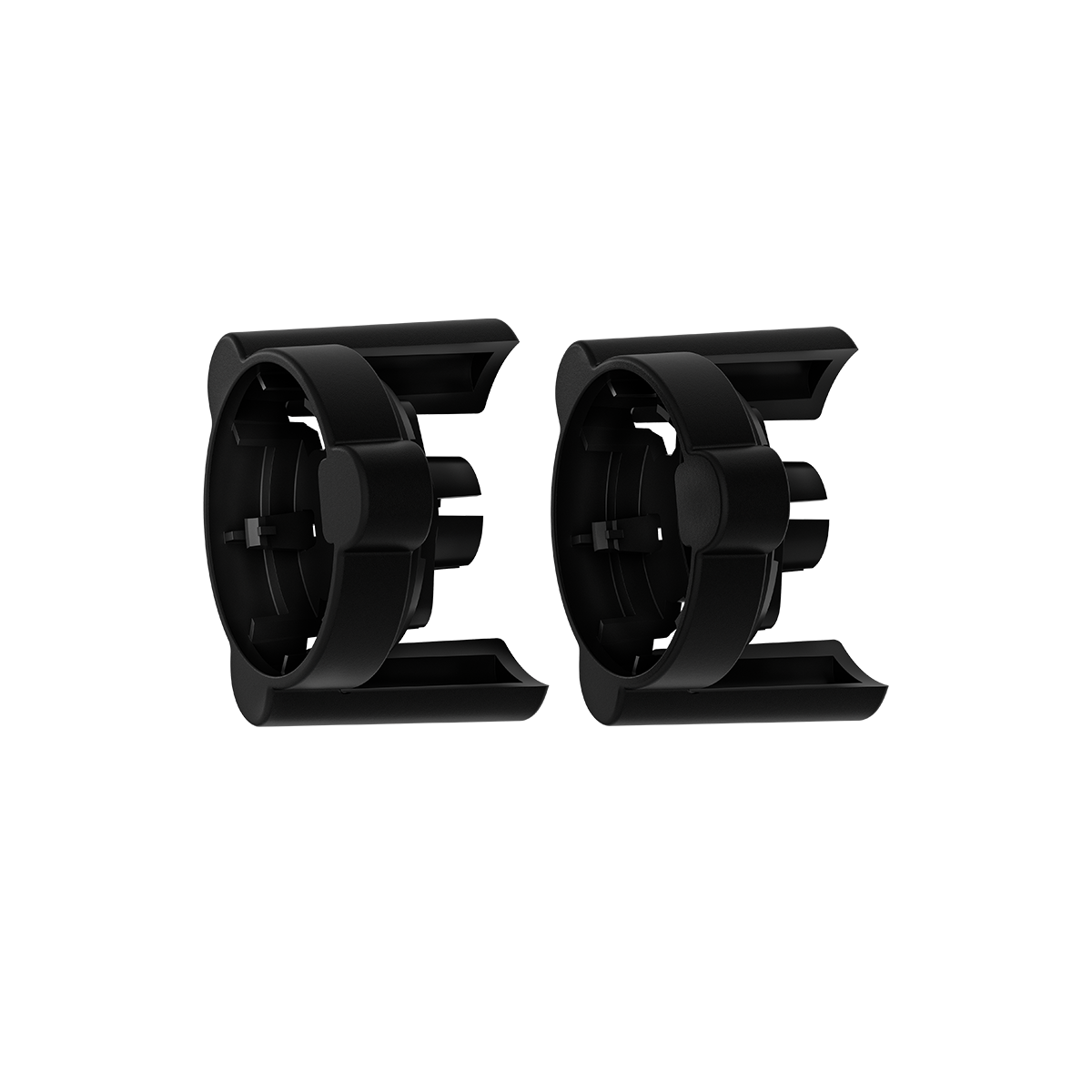

12 S600193 8397020 Care-handle, black, 2 pcs
14 S600196 8237572 Shower head, 250 mm
15 S600195 8233058 Hand shower
16 S600094 8221921 Wall bracket, chrome
17 S600246 8239619 Slider, chrome
18 S600109 8252036 Shower hose, chrome

Byggvarubedömningen

modal.bvb.desc;

Accepted installation instructions

Leadfree

Lead Free means that we have replaced the lead normally found in brass alloys. In this way, we get products with less environmental impact. Lead Free-labeled products contain less than 0.1% lead and are thus classified as lead-free.

Energyclass

The table below the product shows the energy class of the mixer. Certificates for energy labeling can be found under documents.
