MORA MMIX tronic basin mixer, battery operation

MORA MMIX tronic is a new sensor controlled basin mixer. Sensor controlled mixers started out in public facilities, but are increasingly finding their way into modern homes. A sensor detects when you put your hands underneath the mixer and automatically activates the water flow until you remove your hands. Hygienic, energy-efficient and childishly simple.

Find retailers
Description
Champagne PVD, battery operation (included battery)
Article number
720080.16
EAN
7391887259395
Flow 3 bar
5.0 l/m

PROPERTIES

  • With temperature knob, battery operation (included battery)
  • Soft closing solenoid valve
  • Safe against vandalism, complete in metal
  • Eco (energy and water saving constant flow aerator)
  • Flush Timeout - safety shut-off to prevent flooding
  • 30 sec. rinse time via sensor
  • Can be turned off for 60 sec. (eg for cleaning)
  • Low power consumption - Long life
  • Equipped with system for thermal disinfection against legionella
  • IP class sensor, IP67
  • Approved non-return valves, EN-Standard EN1717
  • Environmental friendly material, Lead free, Nickel Free

    Installation:
  • Automatic sensor calibration
  • After adjusting to the desired temperature, knob can be replaced with a lid
  • All models can be adapted for either battery 6V or mains operation 12V AC/DC
  • For mains operation requires installation of the adapter kit art.no. S600147
  • Soft Pex® hoses with non return valves and filters (stainless steel braided)

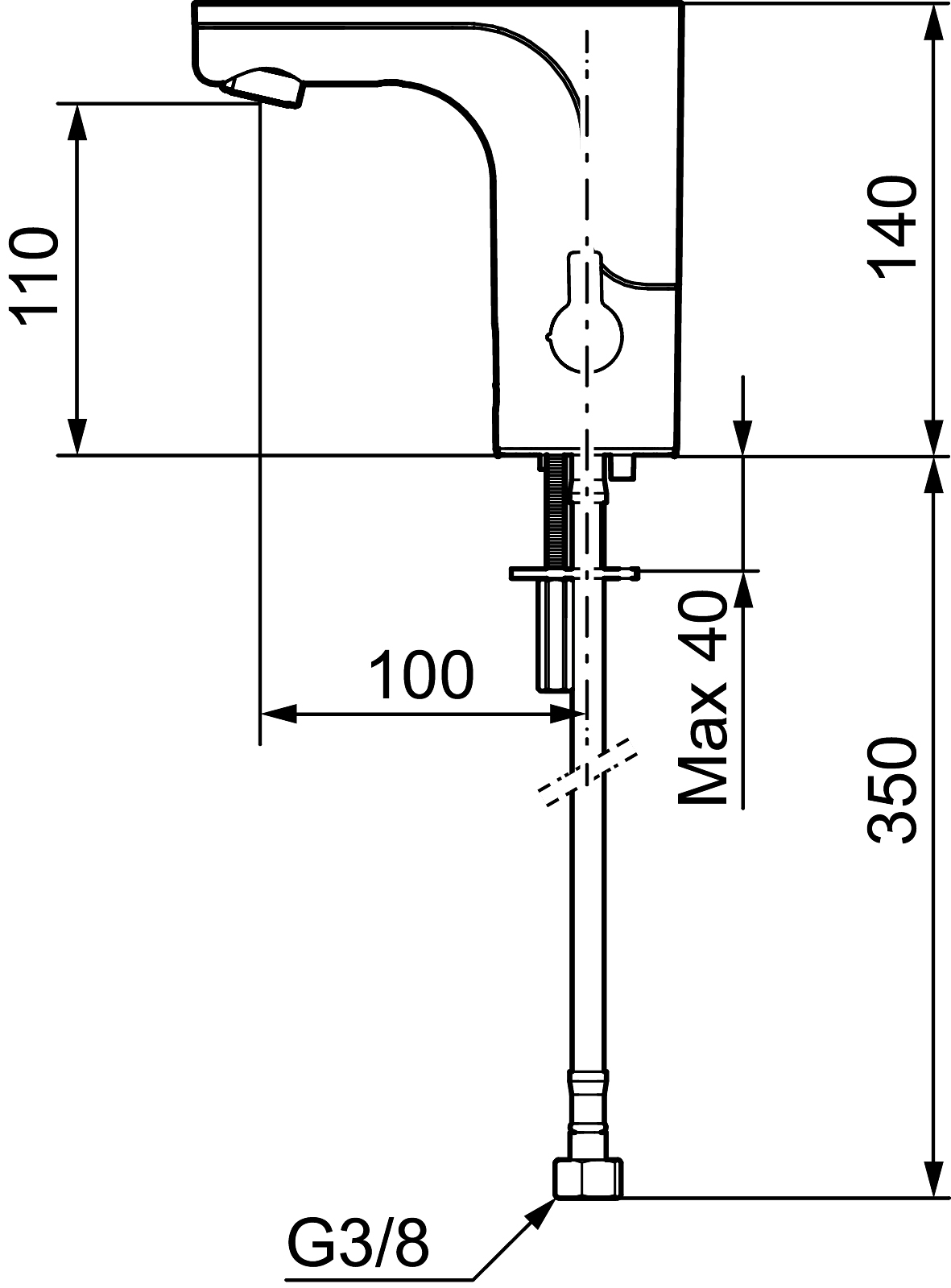

  • Hole diameter Ø33,5-37 mm

    Settings:
  • Adjustable max temperature
  • Programmable function for hygiene flushing
  • Adjustable flush time
Backflow protection unit type EB

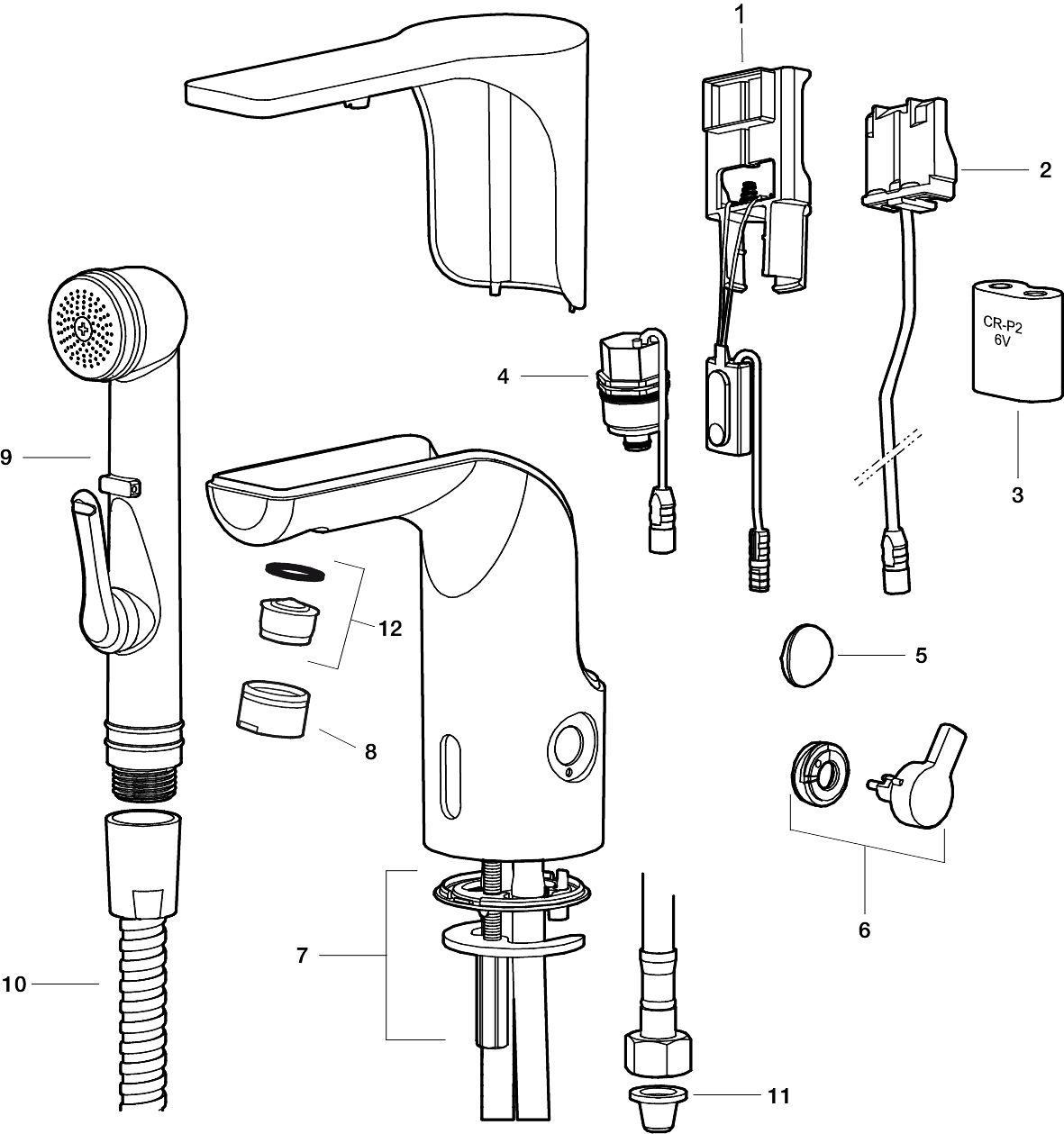

K Mora MMIX Tronic.png
No. Art no. RSK Description
1 S600278 8398041 Electronic unit, Stand.
1 729452.AE 8553558 Electronic unit, centrally controlled

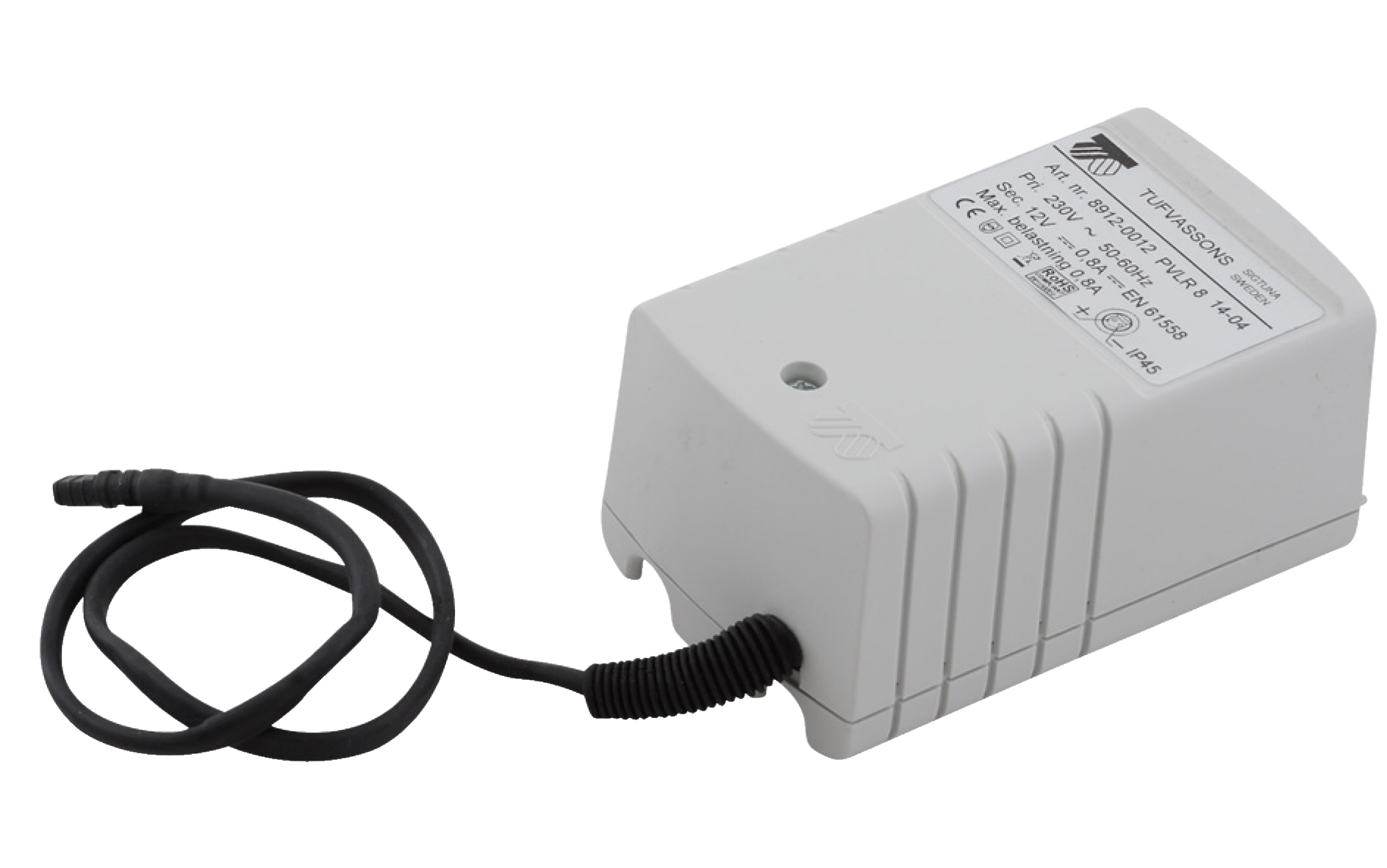

2 S600131 8483190 AC adapter

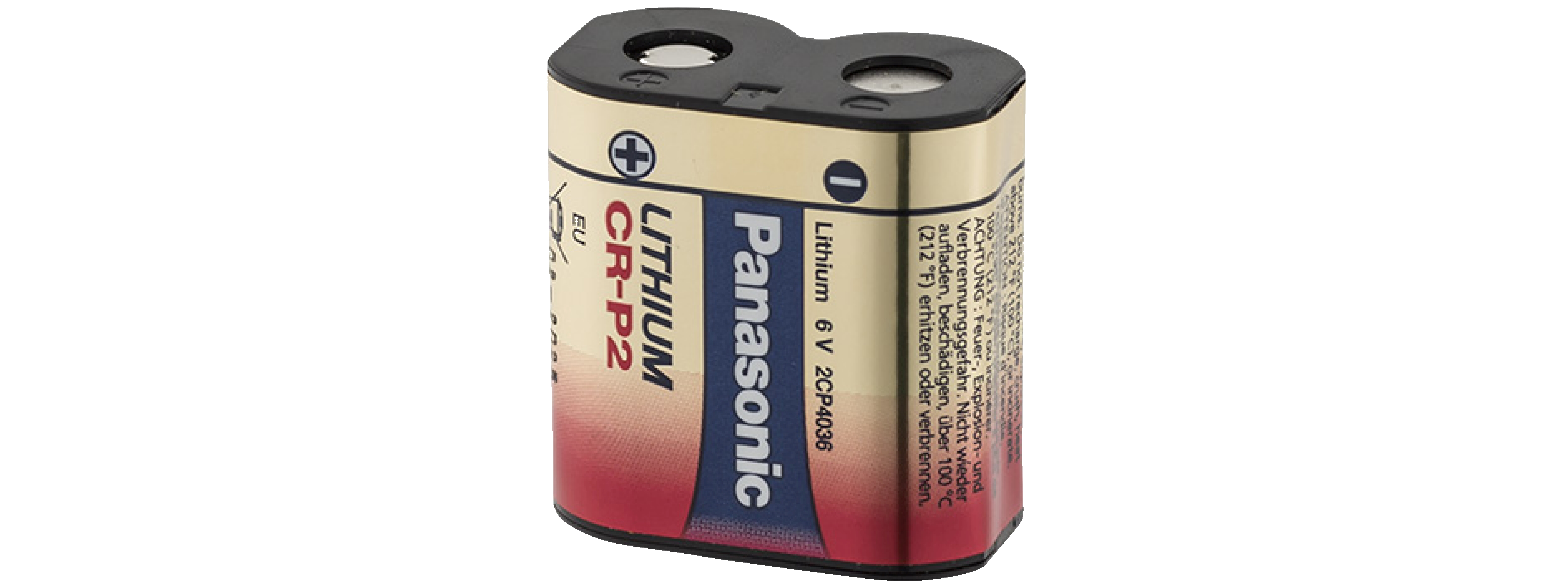

3 S600135 8483191 Battery
4 S600277 8398040 Solenoid valve
5 729457.AE 8553563 Cover plug
6 729456.AE 8553562 Lever, chrome
6 729456.11AE 8483168 Lever, black PVD
6 729456.14AE 8483180 Lever, polished copper PVD
6 729456.16AE 8483181 Lever, champagne PVD
6 729456.60AE 8483182 Lever, polished brass PVD
7 729458.AE 8553564 Fastening
8 131415.AE 8281512 Housing M24 utv., 15 mm, chrome
8 131415.11AE 8281550 Housing M24 utv., 15 mm, black PVD
8 131415.14AE 8281662 Housing M24 ext., 15 mm, polished copper PVD
8 131415.16AE 8281663 Housing M24 ext., 15 mm, champagne PVD
8 131415.60AE 8281664 Housing M24 ext., 15 mm, polished brass PVD
9 729485.AE 8184336 Self-closing handshower
10 S600207 8236647 Shower hose, L=1,5 m, chrome
11 129296.AE 8295327 Filter kit Soft PEX 3/8 (2 pcs)
12 132205.AE 8281441 Aerator insert, 5 l/min at 200–600 kPa
12 S600072 8281671 Aerator insert, 3 l/min at 200–600 kPa
12 S600226 8280024 Aerator insert, 1,7 l/min at 200–600 kPa

Byggvarubedömningen

modal.bvb.desc;

Accepted installation instructions

Leadfree

Lead Free means that we have replaced the lead normally found in brass alloys. In this way, we get products with less environmental impact. Lead Free-labeled products contain less than 0.1% lead and are thus classified as lead-free.

Energyclass

The table below the product shows the energy class of the mixer. Certificates for energy labeling can be found under documents.
