PROPERTIES
- With frost-proof positioned backflow prevention device, incl. non-return valve
- Key and metal handle included
- Sliding wall plate for adjustment to wall thickness, or projection
- Solder- and thread connection
- Hose connection 3/4 thread
- Approved backflow prevention device, EN-Standard EN 1717
Backflow protection unit type
Enter your e-mail address, then the parts list will be sent to your inbox.

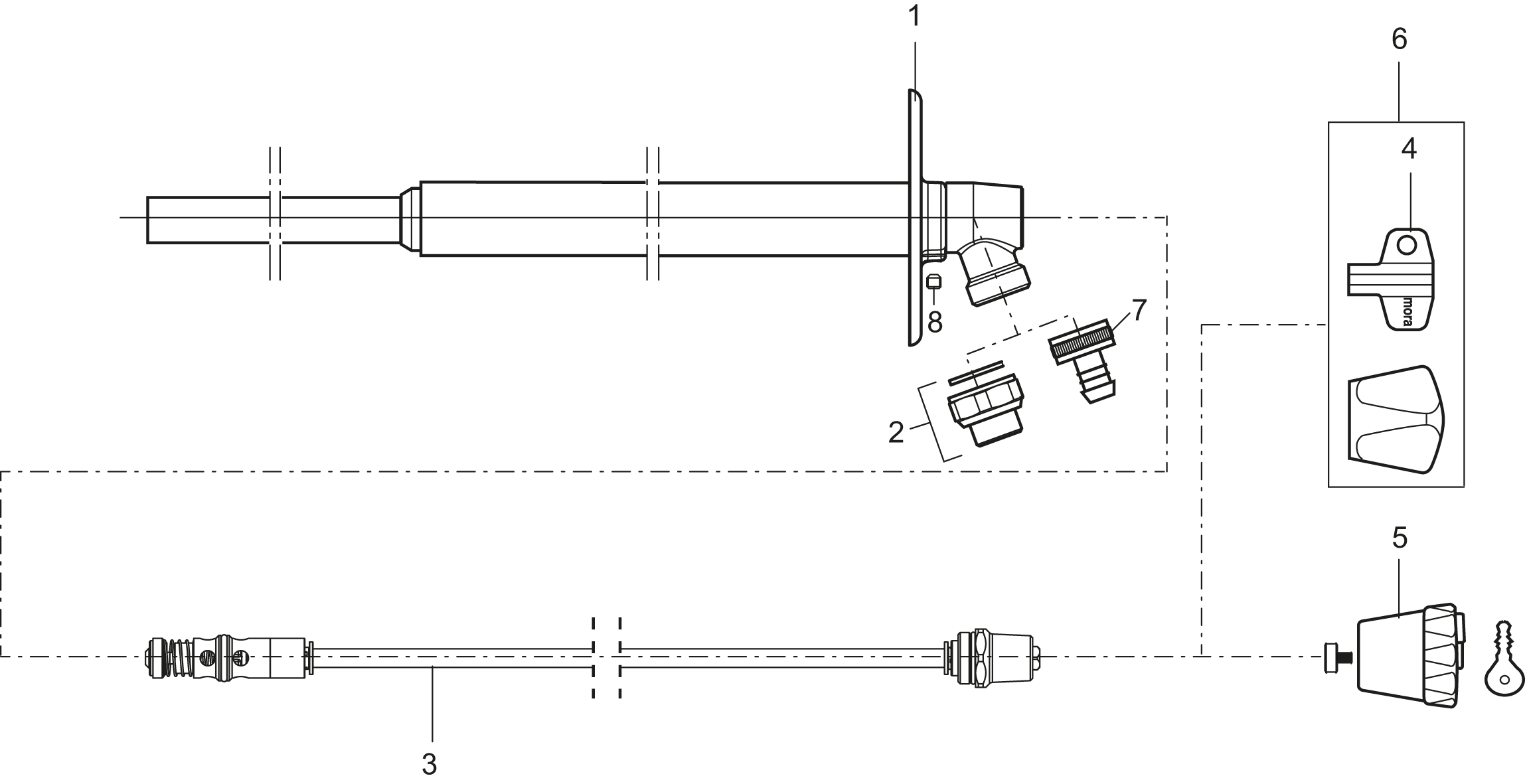

| No. | Art no. | RSK | Description |
|---|---|---|---|
| 1 | 409292.AE | 5438343 | Wall plate |
| 2 | 640000.AE | 8187010 | Transition nipple 1/2" ext - 3/4" int, with gasket |
| 3 | 409267.AE | Spindle complete with silicon hose 150 mm | |
| 3 | 409318.AE | Spindle complete with silicon hose 200 mm | |
| 3 | 409268.AE | 8938269 | Spindle complete with silicon hose 300 mm |
| 3 | 409269.AE | 8588934 | Spindle complete with silicon hose 400 mm |
| 3 | 409270.AE | Spindle complete with silicon hose 500 mm | |
| 4 | 630520.AE | 8938265 | Key, 1 pcs |
| 4 | 630520.AC | 8938266 | Key, 10 pcs |
| 5 | 409213.AE | 8938275 | Lockable handle |
| 6 | 409304.AE | Metallic handle and key | |
| 7 | 709563.AE | Hose connection G3/4 | |
| 8 | 409176.AE | Screw M6x6 |
Byggvarubedömningen
modal.bvb.desc;
Accepted installation instructions
Leadfree
Lead Free means that we have replaced the lead normally found in brass alloys. In this way, we get products with less environmental impact. Lead Free-labeled products contain less than 0.1% lead and are thus classified as lead-free.
Energyclass
The table below the product shows the energy class of the mixer. Certificates for energy labeling can be found under documents.
